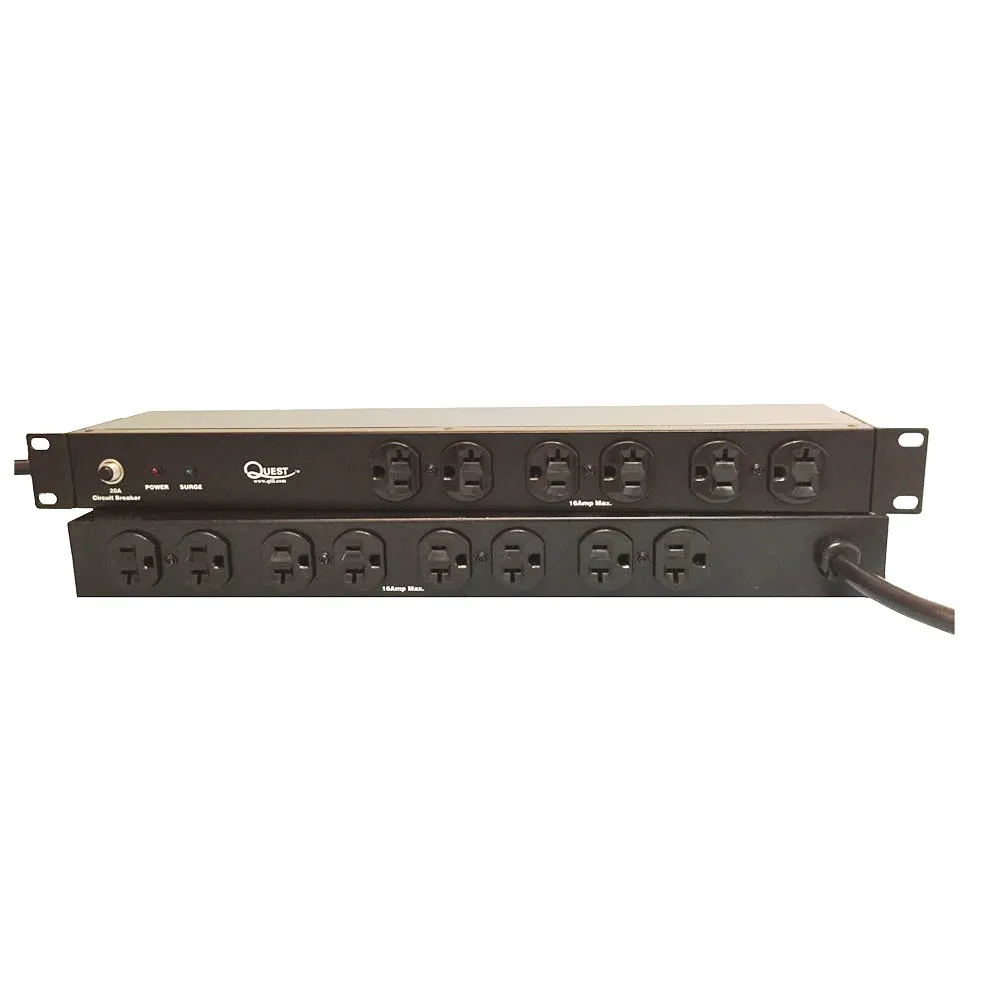

14 OUTLETS, HORIZONTAL 19″ RACK MOUNT SURGE STRIP, 1U, 120V/20A

SKU: HPS-E14

Login

Quick Overview

This 14-Outlet Horizontal Power Distribution Units (PDU) is a UL listed surge protected power strip with EMI/RFI protection built-in. It has (6) 120VAC/20A outlets on the front and (8) in the rear, and is constructed with a 6ft power cord with a 3-prong NEMA 5-20 plug, and a safety switch guard to protect inadvertent tripping of the on-off switch. It is ideal for use in both floor enclosures and open frame racks, comes standard with removable vertical mounting brackets and has a black microfinish to match rack and enclosure color.

Color Length Height Width Weight
Black 19″ 4″ 1.75″ 4.6 lbs
Package Length Package Width Package Height Package Weight
21″ 8″ 3″ 6″ lbs
OVERVIEW

This 14-Outlet Horizontal Power Distribution Units (PDU) is a UL listed surge protected power strip with EMI/RFI protection built-in. It has (6) 120VAC/20A outlets on the front and (8) in the rear, and is constructed with a 6ft power cord with a 3-prong NEMA 5-20 plug, and a safety switch guard to protect inadvertent tripping of the on-off switch. It is ideal for use in both floor enclosures and open frame racks, comes standard with removable vertical mounting brackets and has a black microfinish to match rack and enclosure color.

Color Length Height Width Weight
Black 19″ 4″ 1.75″ 4.6 lbs
Package Length Package Width Package Height Package Weight
21″ 8″ 3″ 6″ lbs

Description

Mounting Position Horizontal
Mounting Bracket & Hardware Included
Height (Rack Unit) 1.75″ (1U)
Mounting Width 19″
AC Rating Volts 120V
AC Rating Amps 16Amp
AC Rating Watts 1920W
AC Rating Frequency 60Hz
Circuit Breaker Switch 20A
Surge Protection (EMI/RFI) 3 Line
Joule Rating 1050 joules
Power/Surge LED Indicator Red / Green (Surge)
Outlets 14 (6 Front & 8 Rear)
Outlet Max. Output 14Amp
Receptacle Type NEMA 5-20R
Power Cable 12 AWG / 3 SJT
Cable Length 6 ft
Plug Type NEMA 5-20P
Housing Material Cold Rolled Steel
Color Black
Certification UL, RoHS

Drawings

HPS-E14
